Hangcha Trucks

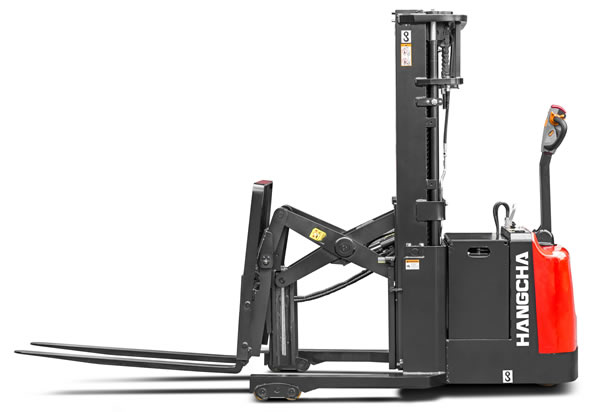

A Series Walkie Reach Stacker 1.4t

​The A-Series Walkie Reach Stacker, 1.4t has versatile capabilities, helping to boost efficiencies in and around the warehouse. It acts as a counterbalanced stacker when its fork is extended, or straddle stacker when its fork is retracted, helping to operate in narrow passage. As a result, it is ideal for numerous warehouse applications – from dock-to-stock and everything in between. The scissor fork extension system is powered by a multi-function handle with electric power steering, giving you incredible load handling control with excellent manoeuvrability.

Three-support-point and low centre of gravity design, combined with the high-strength steel plate structure ensures loads up to 3.0 tonnes can be moved easily whilst ensuring a long service life. The standard configuration of creep speed driving function allows the truck to move at slow speed more conveniently, when working in confined space. What’s more, the battery indicator, timer and self-diagnosis monitor provides easy maintenance.

  • AC drive motor
  • CURTIS AC drive motor controller + oil pump motor controller
  • EPS system
  • Automatic deceleration at turns
  • Proportional speed regulation for all fork operations
  • Multi-function battery condition meter
  • High-performance load wheels
  • Fork length 42.1”
  • Adjustable outer distance of forks within the range of 7.9-33.5”
  • Forward and backward tilt of the fork, by 3° and 5° respectively
  • Load backrest
  • 106.3“ duplex mast with double lifting cylinders
  • Intelligent mast decline
  • Multi-function tiller
  • Speed limit when fork is at elevated location
  • Horn
  • Key switch
  • Creep speed function
  • Emergency reverse
  • Forward extension distance of fork 23.2”
  • Mast of various heights (see mast parameter list for details)
  • Various fork lengths
  • Side shifter
  • Trolley wheels for battery side roll out
  • Cold storage (-30)
  • Mast shield of PC plate
